Side Discharge Silo

All the advantages of Centre Discharge Silos, with the added benefit of a manual discharge at the side of the structure, allowing you to discharge into loader buckets, bags, hoppers or through building walls.

The design of the side discharge configuration is to promote optimum flow at an even discharge rate without separation.

Features & Benefits:

  • Designed in accordance with Euro-code norms, taking structural, wind, snow loads and terrain into consideration
  • Manufactured with EB Equipment’s unique blend of polyester glass reinforced plastic
  • Corrosion resistant and UV stabilised for long life
  • Top access hatch incorporating ventilation fitted as standard
  • Smooth interior with a 60° cone angle allowing consistent flow of content
  • Single piece cone and body construction eliminates seams, joints and bolted sections
  • Superior thermal insulation values when compared to steel silos
  • Supporting steel work is fully welded from structural hollow section and hot dip galvanised
  • Fill pipe includes long radius bends to allow smooth filing with minimum product damage
  • Ventilation pipe maintains internal ambient temperature
  • Outlet height: 1m at 1m distance from front leg assemblies
  • Ø 250mm outlet includes gate valve, extension chute and wind sock

Optional extras are available, including:

  • Wide range of flanges/ fittings to suit specification
  • Stainless steel valve
  • Visual measure incremental scale
  • Food grade
  • WRAS approved
  • Various monitoring/ telemetry options
  • Ladders and platforms to BS4211

Optional colours available in ANY RAL/BS colour, see examples below:

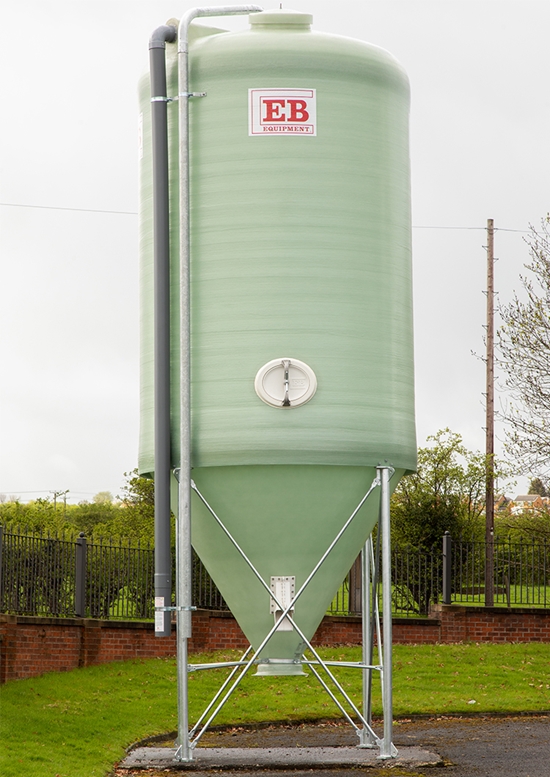

30m³ - 2.85 Ø Side Discharge Silo
30m³ - 2.85 Ø Side Discharge Silo
Side Discharge Chute with Stainless Steel Gate Valve
Side Discharge Chute with Stainless Steel Gate Valve
20m³ - 2.85 Ø Side Discharge Silo
20m³ - 2.85 Ø Side Discharge Silo
30m³ - 2.85 Ø Side Discharge - On Site
30m³ - 2.85 Ø Side Discharge - On Site

How can we help?

Please contact us to discuss your next project requirements.
